TRACK MOUNTED VERTICAL SHAFT IMPACTOR
TMV SERIES
The Track Mounted Vertical Shaft Impactor has the established track record of cost savings, durability and unmatched performance.

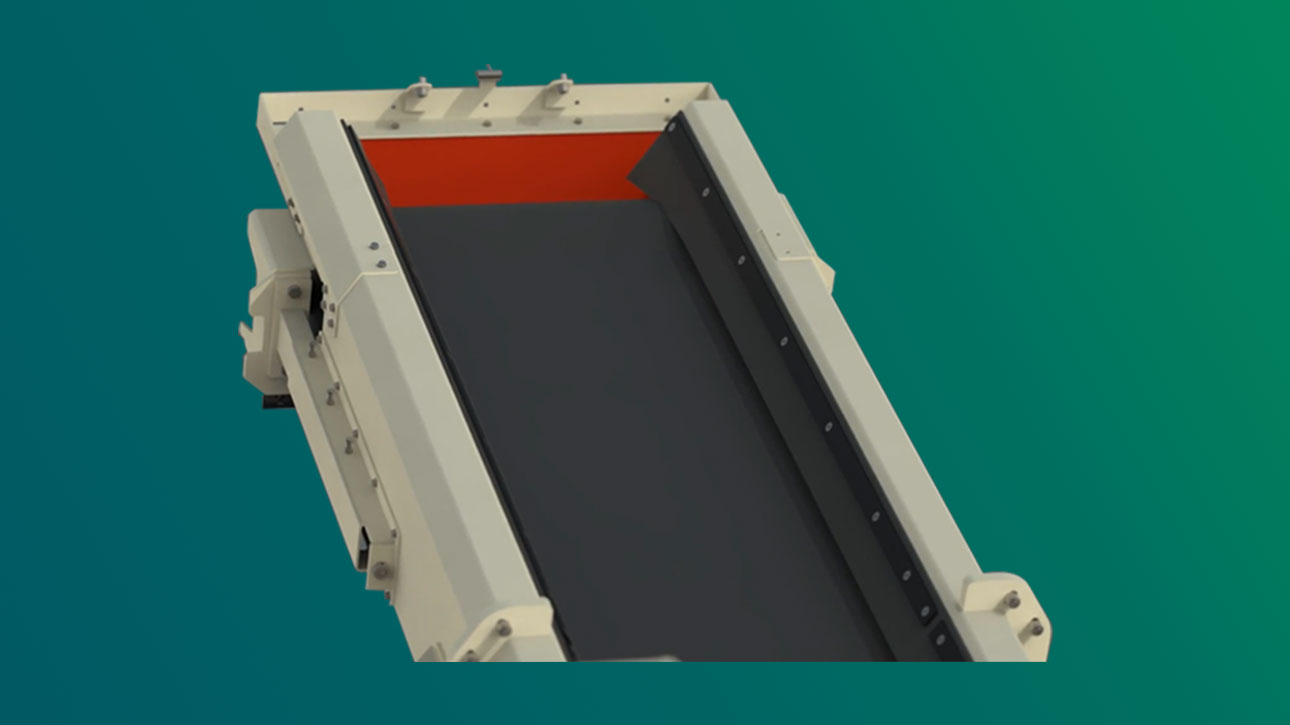

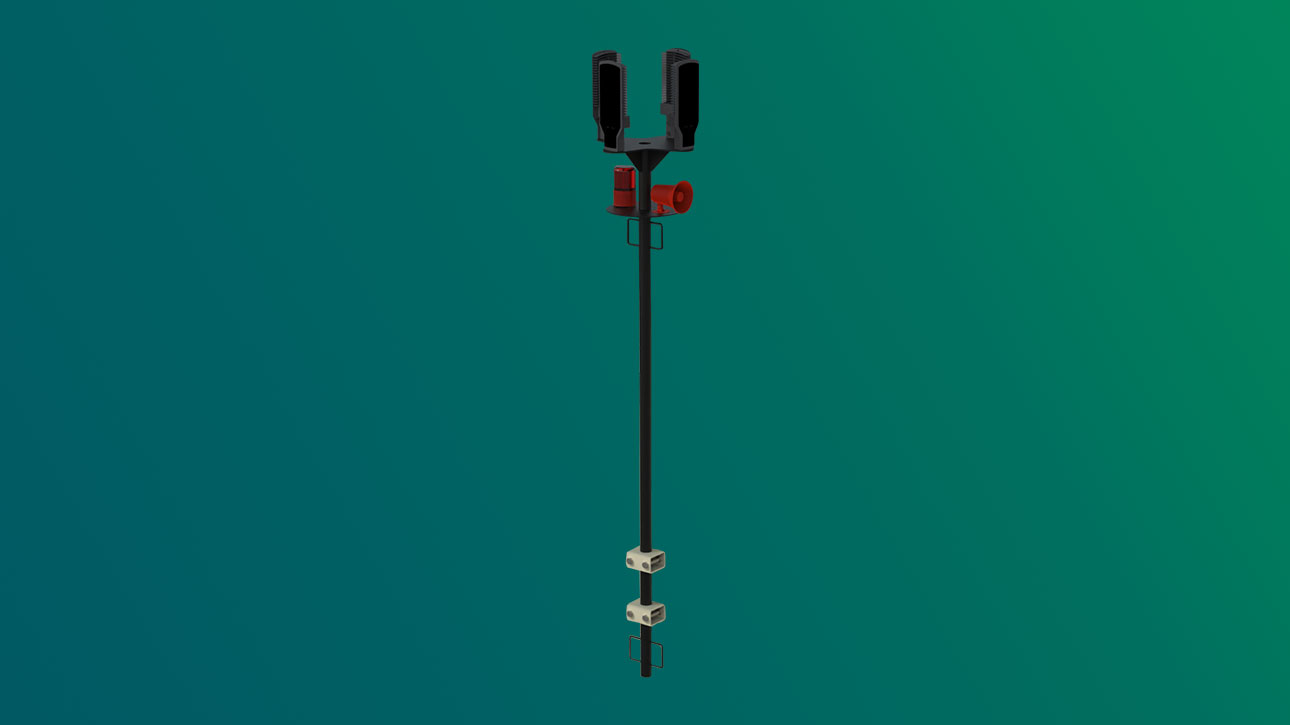

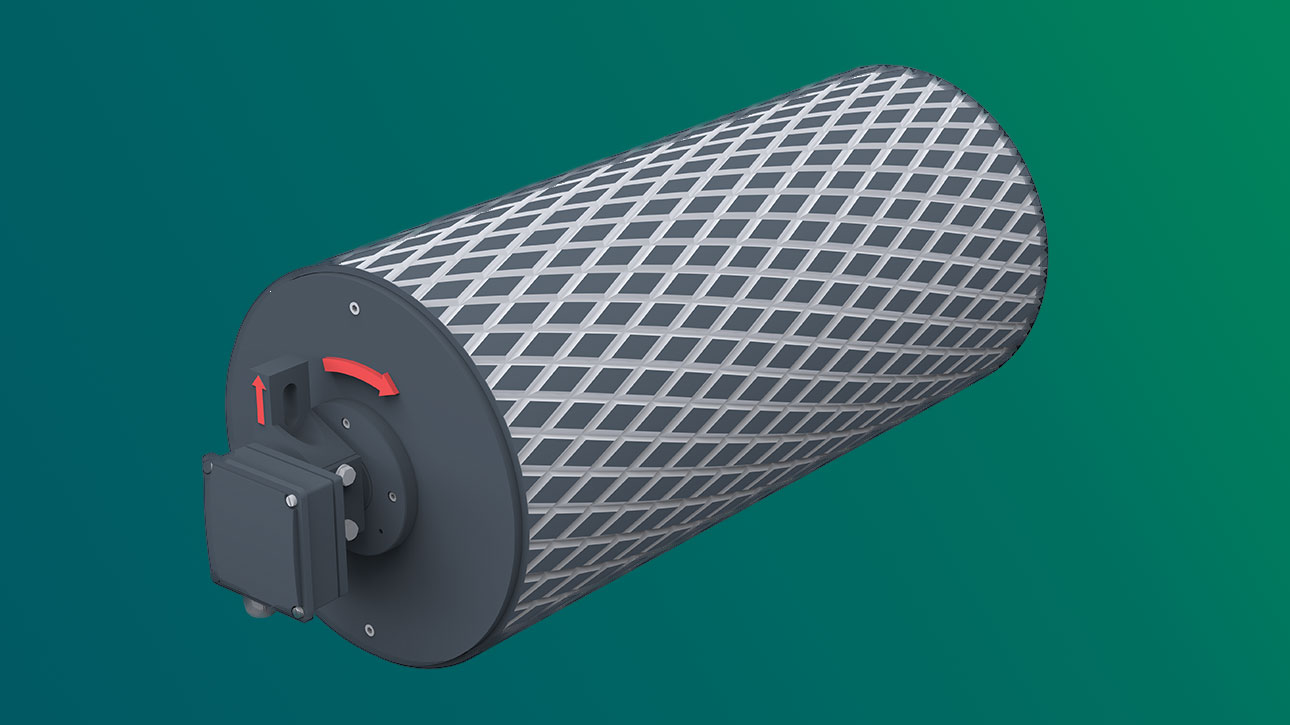

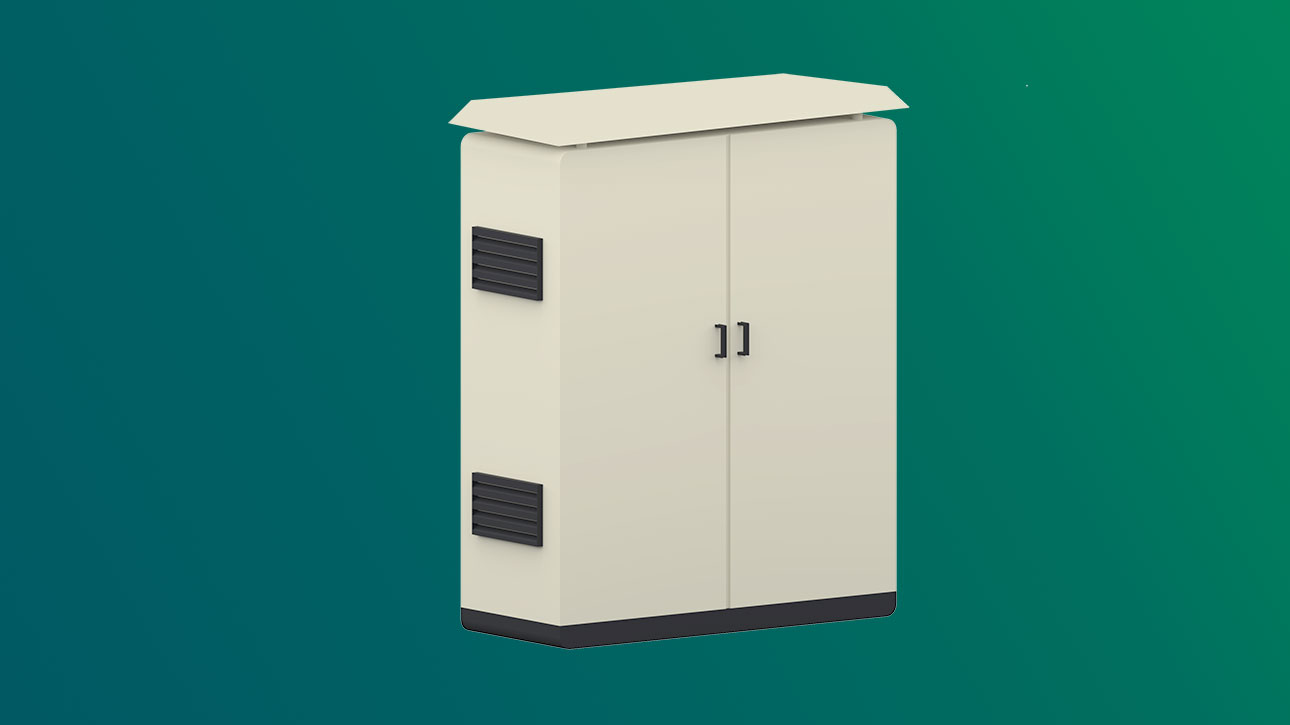

SALIENT FEATURES

TECHNICAL DATA
DESCRIPTION | UNIT | TMV 200 | TMV 300 |
---|---|---|---|

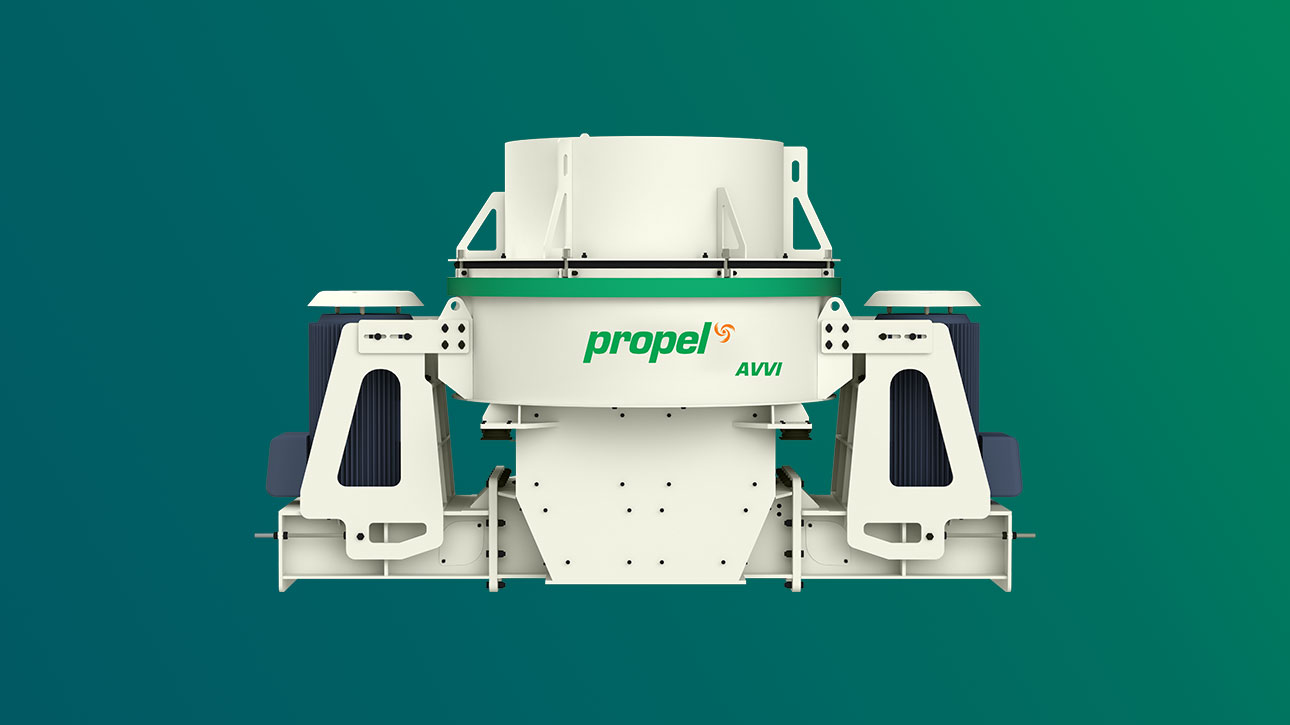

Model | AVVI 200 | AVVI 300 | |
Feed Size (Max.) |
mm | 58 | 66 |
(inch) | (2.2) | (2.6) | |
*Capacity | TPH | 180 - 320 | 250 - 470 |

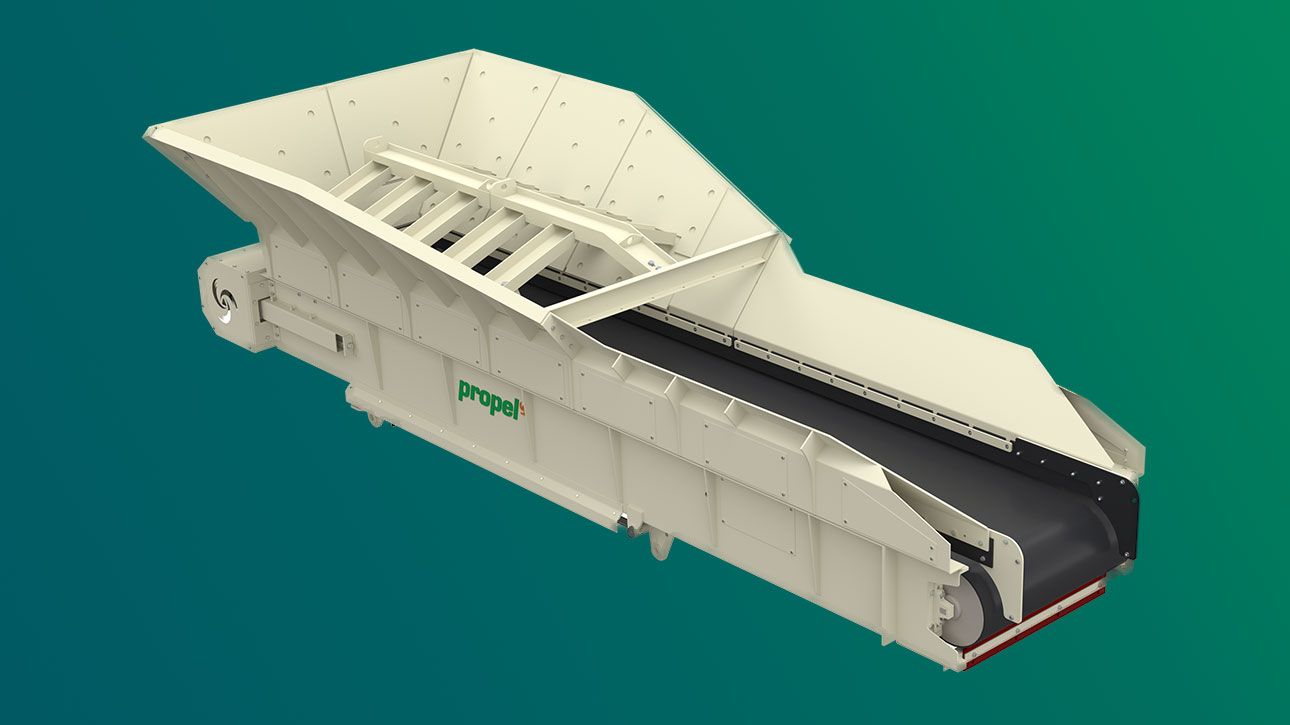

HOPPER / FEEDER | |||
Hopper Capacity | m³ | 6 | 8 |
Feeder Belt Width | mm | 1000 | 1200 |
MAIN CONVEYOR | |||
Belt Width | mm | 1000 | 1400 |
Discharge Height | mm | 3600 | 3600 |
Stock Pile Capacity @ 40 deg | m³ | 69.4 | 69.4 |

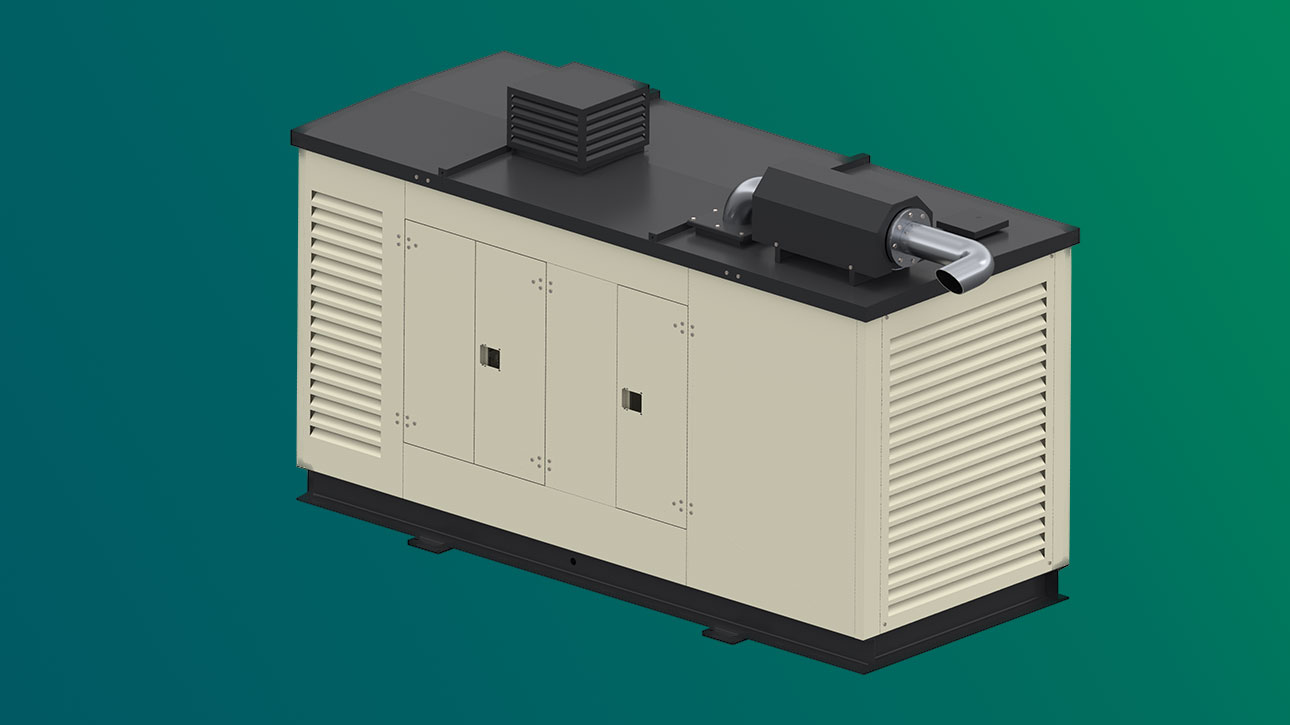

POWER UNIT | |||
Engine | Scania DC13 Engine with Leroy Somer Alternator (or) Volvo Penta TAD 1355 GE with Leroy Somer Alternator | Scania DC16 Engine with Leroy Somer Alternator | |
Diesel Tank Capacity | ltrs | 600 | 1000 |

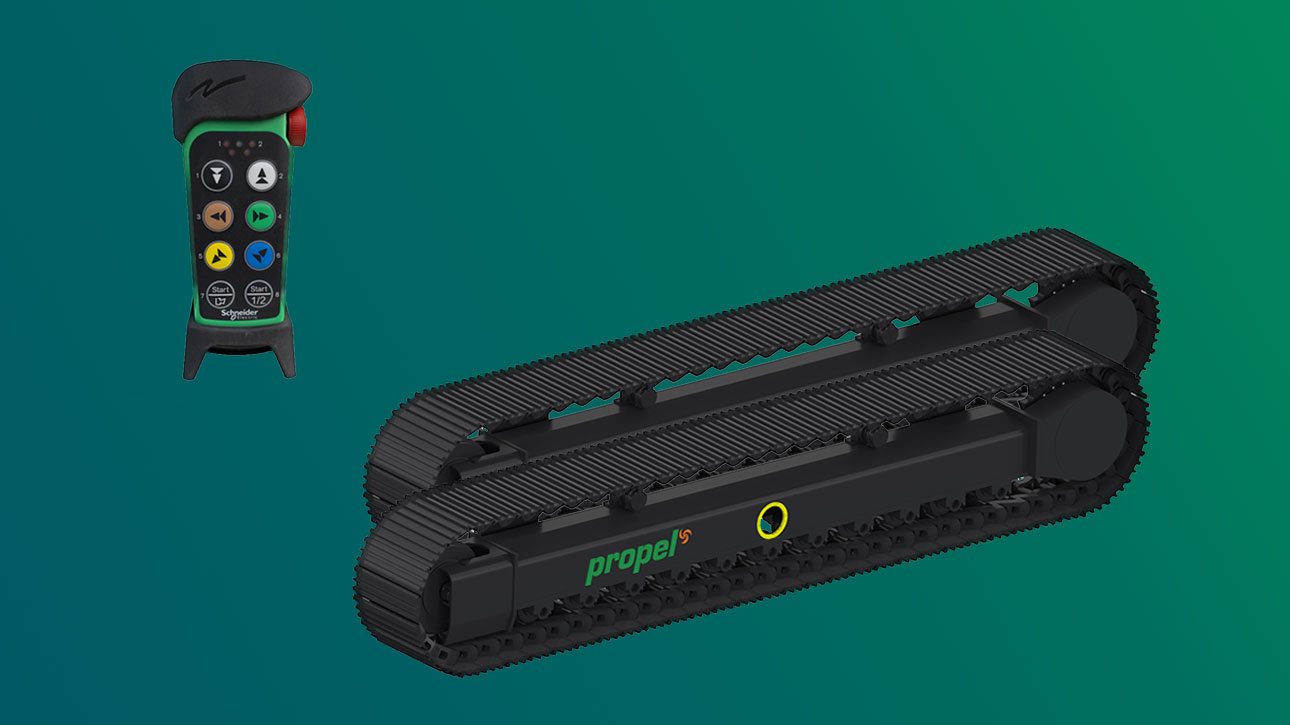

UNDER CARRIAGE | |||
Shoe Width | mm | 500 | 500 |
Hyd. Tank Capacity | ltrs | 400 | 400 |
DIMENSIONS | |||
Transport (L x W x H) |
mm | 17810 x 3425 x 3870 | 17850 x 3500 x 4100 |
(inch) | (701.1 x 134.8 x 152.3) | (702.7 x 137.7 x 161.4) | |
Working (L x W x H) |
mm | 16270 x 4040 x 5325 | 19400 x 4100 x 5400 |
(inch) | (640.5 x 159.0 x 209.6) | (763.7 x 161.4 x 212.5) | |
**Weight |
kg | 36000 | 50000 |
(Ton) | (36.0) | (50.0) |
*Details may vary based on application
**Weight inclusive of motor & accessories
Note: All the above technical details may vary at any time during engineering process & design development
