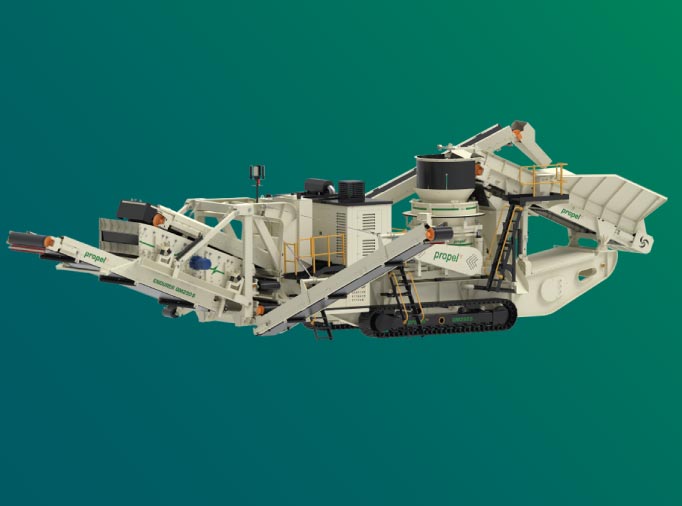

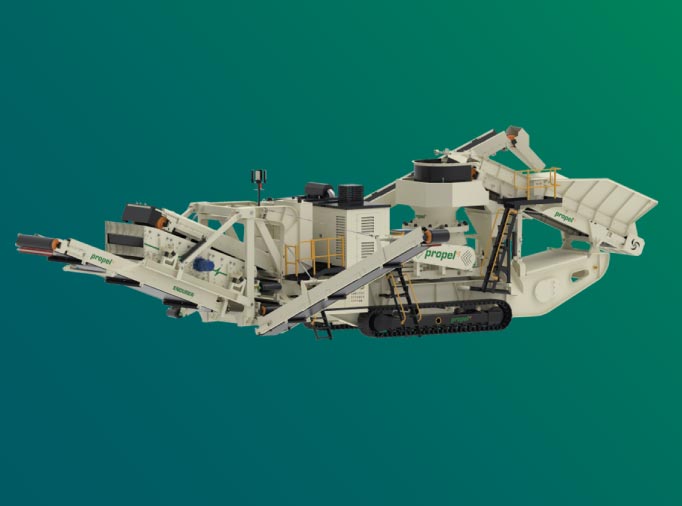

TRACK MOUNTED ENDURER
QM 250S
Propel QM 250S is designed to maximise throughput and product shape in a wide range of crushing applications. The inclusion of a plant mounted double deck vibrating screen allows for oversize material to be re circulated for re crushing and for sized end products. Its cost effectiveness is justified by its low fuel consumption, low operating and maintenance costs as well as high capacity.
![]( https://www.propelind.com/wp-content/uploads/2022/06/3.Track-Mounted-Endurer.png)
TECHNICAL DATA
SERIES | UNITS | TMC Q250 | TMC SQM 230 | TMC SQM 320 | TMC Q350 |
---|---|---|---|---|---|
Feed Opening Size (W x L) | mm (inch) |
220 (8.7) |
85 (3.3) |
100 (3.9) |
260 (10.2) |
CSS Range | mm (inch) |
26 - 45 (1.0 - 1.8) |
15-30 (0.6-1.2) |
15 - 30 (1.5 - 3.0) |
30 - 50 (1.2 - 2.0) |
*Capacity | TPH | 150 - 380 | 125-250 | 180- 375 | 215 - 540 |
Hopper / Feeder | |||||
Hopper Capacity | m3 | 6 | 6 | 7 | 7 |
Feed Belt Width ( mm ) | mm (inch) | 1000 | 1000 | 1200 | 1200 |
Main Conveyor | |||||
Belt Width | mm | 1000 | 1000 | 1200 | 1200 |
Discharge Height | mm | 3600 | 3600 | 3400 | 3400 |
Stock Pile Capacity | m3 | 69.4 @ 40° | 69.4 @ 40° | 58.4 @ 40° | 58.4 @ 40° |
Under Carriage | |||||
Shoe Width | mm | 500 | 500 | 500 | 500 |
Hydraulic Tank Capacity | Ltrs | 390 | 390 | 420 | 420 |
Power Unit | |||||
Engine | Scania DC09 Engine With Alternator CAT C9.3B Engine With Alternator Cummins QSL9 Engine With Alternator. | Scania DC13 Engine With Alternator Volvo Penta TAD 1355 GE with Alternator |
|||
Diesel Tank Capacity | Ltrs | 500 | 500 | 700 | 700 |
Dimension | |||||
Transport ( L x W x H ) | mm (inch) |
15810 x 3400 x 4050 (622.5 x 133.9 x 159.5) |
15810 x 3400 x 4050 (622.5 x 133.9 x 159.5) |
17600x 3300 x 3950 (692.9 x 129.9 x 155.5) |
17600x 3300 x 3950 (692.9 x 129.9 x 155.5) |
Working ( L x W x H ) | mm (inch) |
17815 x 4760 x 4800 (701.4 x 187.4 x 189.0) |
17815 x 4760 x 4800 (701.4 x 187.4 x 189.0) |
16690 x 3855 x 5265 (657.08 x 151.7 x 207.2) |
16690 x 3855 x 5265 (657.08 x 151.7 x 207.2) |
**Weight | Kg (Ton) | 48000(48.0) | 48000(48.0) | 56200(56.2) | 56200(56.2) |
*Details may vary based on application
**Weight inclusive of motor & accessories
Note: All the above technical details may vary at any time during engineering process & design development
