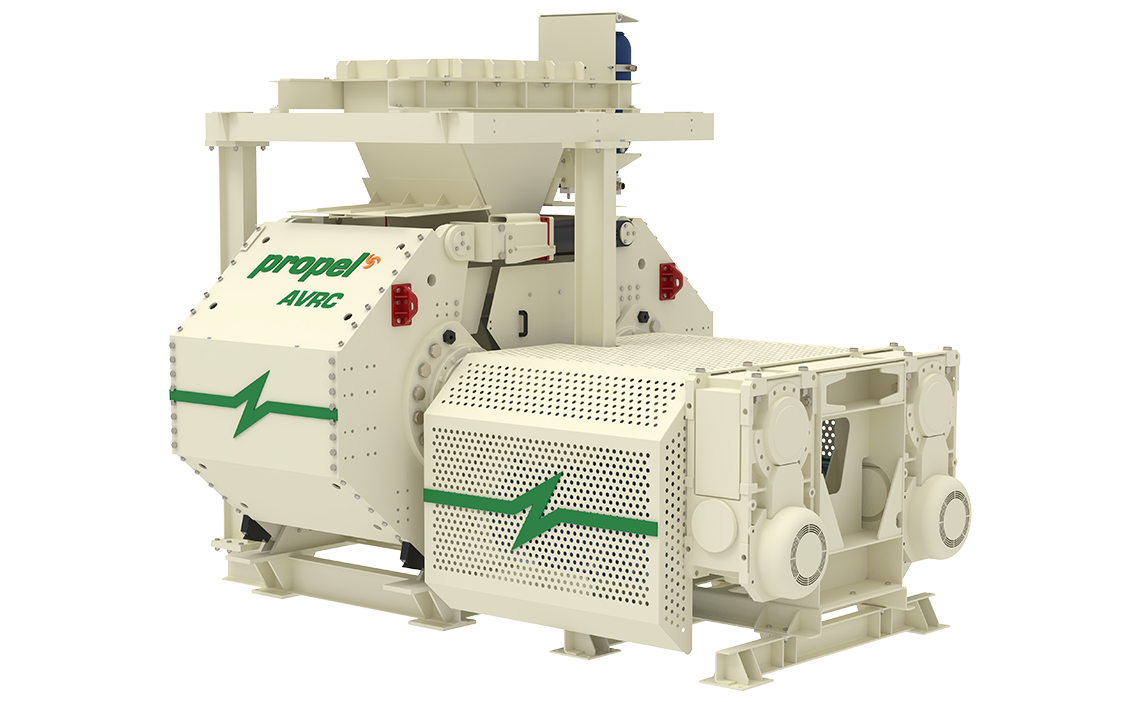

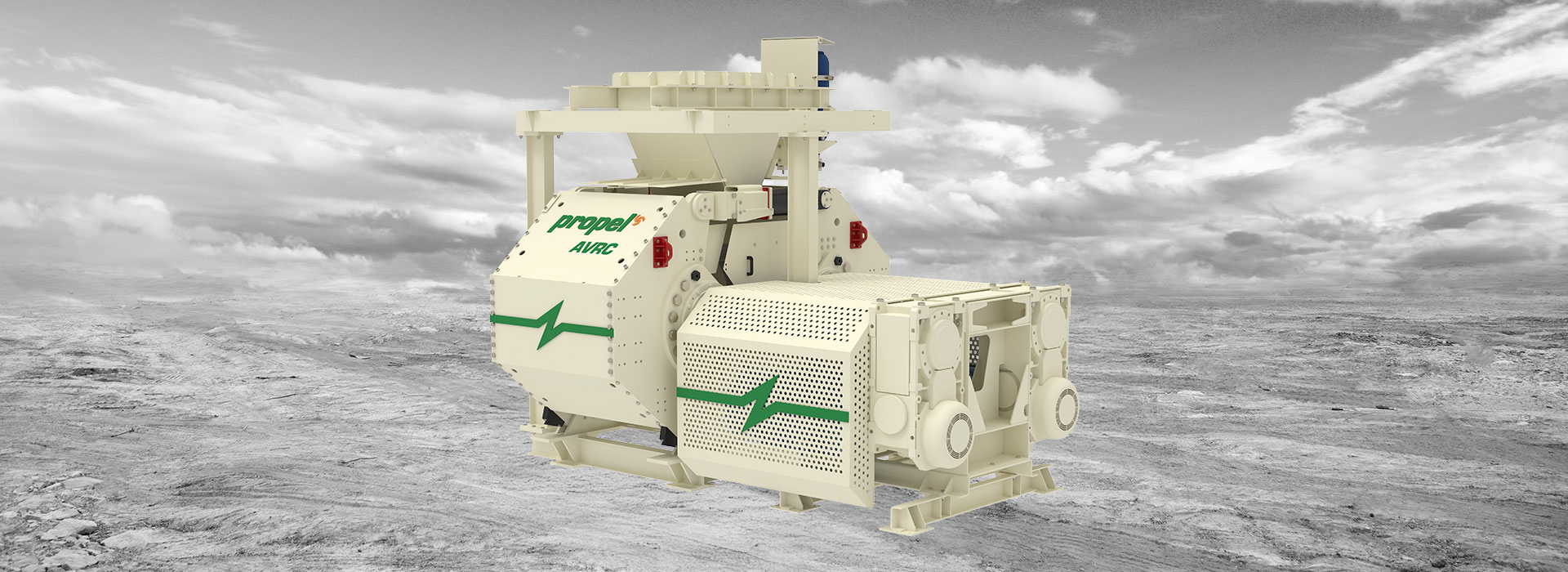

ROLL CRUSHER
AVRC SERIES
New generation Roll Crusher has been designed using latest engineering tools for high reliability. It has premium features like high-efficiency gear drive and hydraulic gap management. Its features and the unique design help manufacture sand at lowest possible power consumption and liner wear cost.

TECHNICAL DATA
VARIANT (Power ) | UNIT | 2 X 75 KW | 2 X 90 KW | 2 X 110 KW |
---|---|---|---|---|
Motor Power | HP | 2 x 100 | 2 x 120 | 2 x 150 |
Capacity Throughput | TPH | 235 | 280 | 310 |
Capacity Product <5mm | 60 - 75 | 70 - 90 | 90 - 105 | |
Roller Dimension Dia x Width |
mm(inch) | 1330x760 52"x30" |
1330x760 52"x30" |
1330x760 52"x30" |
Speed | RPM | 52.6 | 52.6 | 60 |
Feed Size(Maximum) | mm(inch) | "30 1.2" |
"30 1.2" |
"30 1.2" |
Wear Parts | High Quality Mn. Steel | |||
Lubrication | Grease Lubrication for Roll Crusher / Oil for Gearbox | |||
Construction | High Grace Steel Plates & Castigs | |||
Weight | Tonnes | 19200 (19.2) |
19500 (19.5) |
20400 (20.4) |
*Disclaimer
Note: All Dimensions and technical specifications are subject to change without prior notice,as they may vary depending on specific
