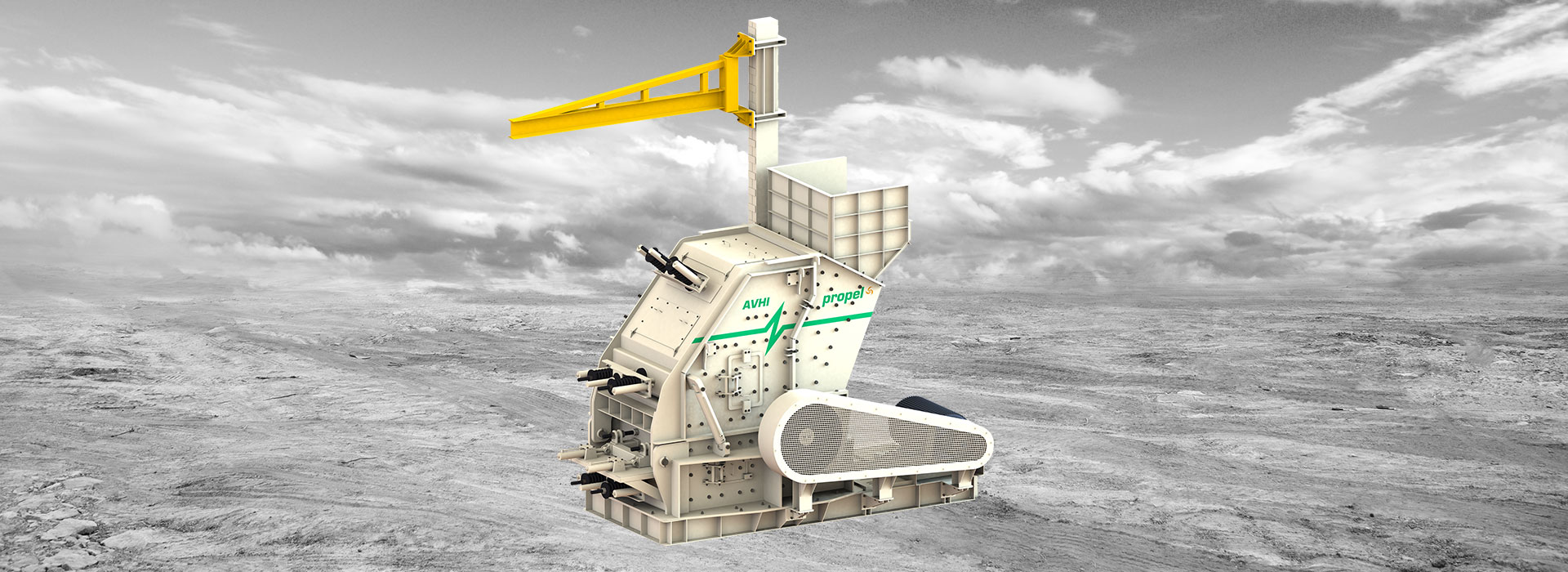

Horizontal Shaft Impact Crusher Manufacturer

TECHNICAL DATA

DESCRIPTION	UNIT	AVHI 250
Feed Opening (Max.)	mm	1400 x 600
Feed Opening (Max.)	(inch)	(55.1 x 23.6)
Feed Size (Max.)	mm	350
Feed Size (Max.)	(inch)	(13.8)
*Capacity	TPH	160 - 300
Rotor Speed	rpm	550 - 620
CSS Settings		Range	Optimum
Apron 1	mm	250 - 10	120
Apron 2	mm	130 - 10	90
Grinding Path Top	mm	130 - 10	60
Grinding Path Bottom	mm	80 - 10	30
Lubrication		Pressurized Grease
Construction		High Grade Carbon Steel Plate (IS:2062)
Mounting Type (optional)		Skid
Motor Power	kW	220
Motor Power	(hp)	295
Weight	kg	23800
Weight	(Ton)	23.8

*Details may vary based on application
Note: All the above technical details may vary at any time during engineering process & design development
