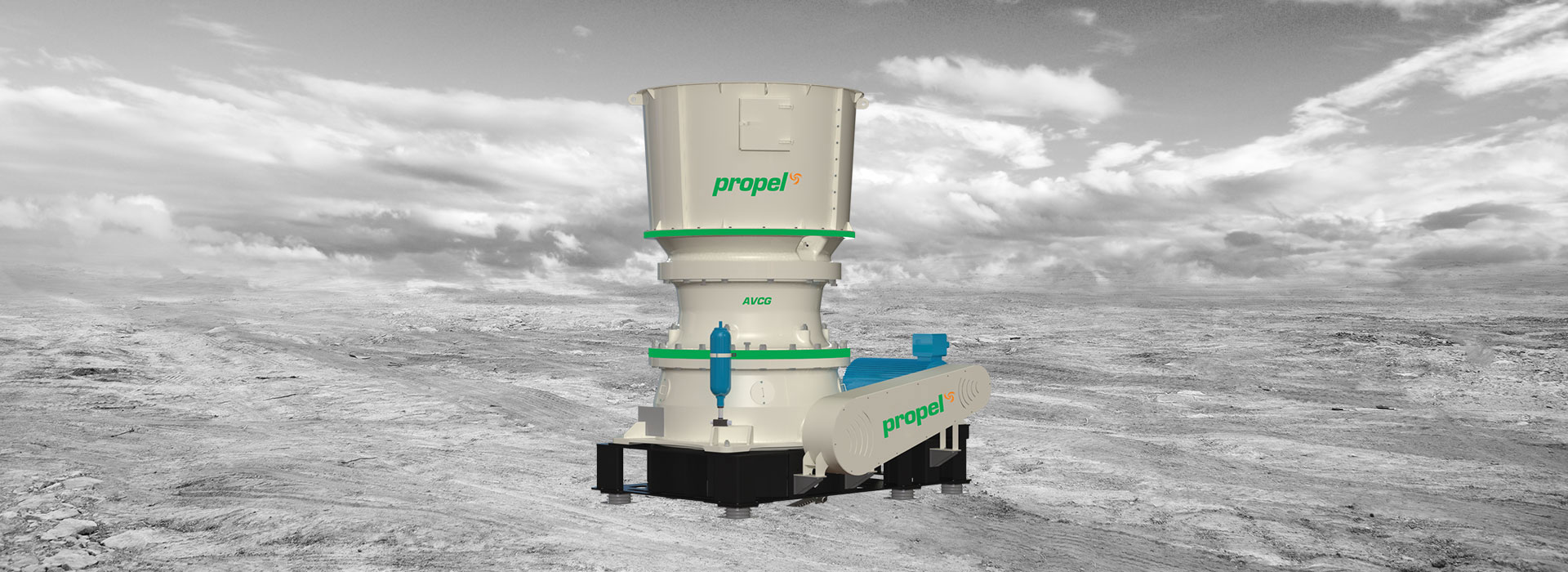

Gyratory Cone Crusher Manufacturer

TECHNICAL DATA

SERIES	UNITS	AVCG 350	AVCG 600
Feed Opening	mm (inch)	Extra Coarse (380) / Coarse (300) Extra Coarse (15.0) / Coarse (11.8)	Extra Coarse (450) / Coarse (360) Extra Coarse (17.7) / Coarse (14.2)
*Capacity	TPH	300 - 400	375 - 550
CSS Range	mm (inch)	30 - 50 (1.2 - 2.0)	50 - 70 (2.0 - 2.8)
Mounting Type (Optional)		Skid	Skid
Design Type		Bush Type	Bush Type
Lubrication		Pressurized oil & grease	Pressurized oil & grease
Construction		High Grade Carbon Steel Casting	High Grade Carbon Steel Casting
Motor Power	kW (hp)	220 - 250 (295.0 - 335.2)	315 (420)
Weight	kg (Ton)	19500 (19.5)	38000 (38.0)

*Details may vary based on application
Note: All the above technical details may vary at any time during engineering process & design development
