Key features
- Large feed opening – 1270 x 870 mm, accepting feed up to 780 mm
- Robust single-toggle design for reliable, efficient crushing
- Electro-hydraulic CSS adjustment for quick setting changes across 60-250 mm
- Reversible jaw plates in a choice of profiles, and an optimised chamber and nip angle
- Heavy-duty, high-grade carbon steel welded frame
- ProLive IoT connectivity, putting operating data at your fingertips
- Easy maintenance access for less service time and less downtime
Key specifications
| Feed opening |
1270 x 870 mm (50 x 34.25 in) |
| Max. feed size |
780 mm (30.7 in) |
| Capacity class |
350 TPH* |
| CSS setting range |
60-250 mm, electro-hydraulic |
| Crusher speed |
230 rpm |
| Motor capacity |
160 kW (215 hp) |
| Basic crusher weight |
28 t |
| Configurations |
Track Mounted · ProFast · Skid |
*All figures indicative; output varies with application, feed material and closed-side setting. Confirmed at proposal stage.
Available in three configurations

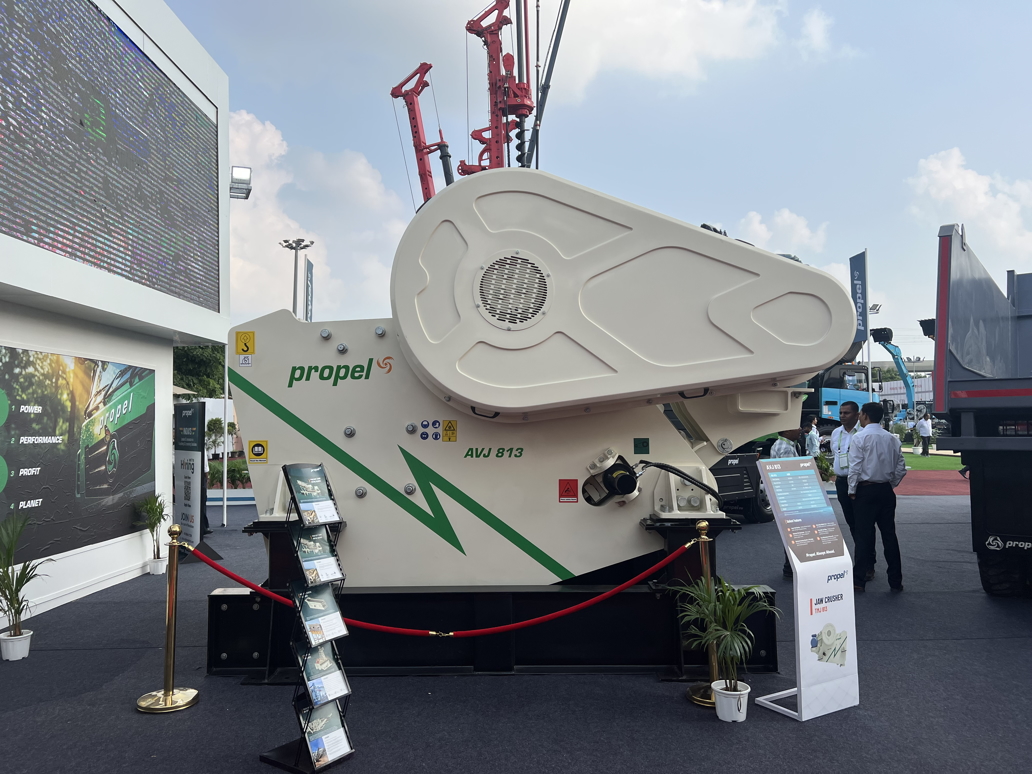

The AVJ 813 comes as Track Mounted, ProFast and Skid - giving operators the same right-sized performance whether they run a fully mobile operation, a rapid-deploy plant or a fixed installation.
Smart, connected and built to last
Every AVJ 813 is ProLive IoT enabled, so operators can monitor performance and operating data in real time and plan maintenance proactively - reducing downtime and keeping the plant productive. A high-grade carbon steel welded frame, grease lubrication and easy service access keep the machine dependable shift after shift, even in demanding hard-rock conditions.
The AVJ 813 joins Propel’s comprehensive range - jaw, cone, gyratory, roll and impact crushers, vibrating screens, sand-washing and water-recovery systems, and Track Mounted and ProFast mobile plants - trusted across India and in more than 50+ countries.
To request a quote or a callback, contact Propel at [email protected] or Toll-free no: +91 - 9345600455
Media contact: Marketing, Propel Industries Pvt Ltd · [email protected] · +91 9789222996
